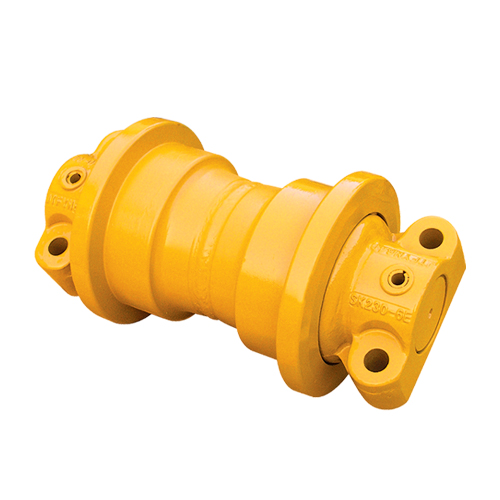

Track Roller

Our track roller models include unilateral track rollers, bilateral track rollers, inner ring track rollers, and outer ring track rollers, which can be use for modern excavators and bulldozers from Komatsu, Caterpillar, Hitachi, Sumitomo, Kobelco, and Daewoo.

Track Roller Features

1. Stable Quality
Made with 50Mn and Cooper sleeves, this bulldozer part is strong and durable.

2. High Rotation Speed and Long Service Life
Owing to our advanced forging technology, the CBT track rollers have high rotation speeds, and long service life.

3. Hardness and Wear Resistance
We apply a special heat treatment with a processing depth of 8mm to the surface of this excavator undercarriage parts, so it is hard and wear resistance when used in severe working conditions.

4. Sophisticated Manufacturing
In the production of our bulldozer undercarriage parts, we apply several processes including forging, quenching, tempering, welding, machining, assembling, surface finishing, and paint spraying.

5. Good Sealing Property
Each of our finished excavator parts goes through the 2.4MPa water pressure and passes and air tightness test, so that they are each well sealed.

Parameters of Track Roller

1. Material : 50Mn, Copper.
2. Surface Finish : In accordancewith the Ra1.6 in GB / T 1031 - 2009.
3. Color : The conventional standard colors are yellow and black, other colors are customizable.
4. Surface Hardness : The hardness is HRC50 - 56 and the depth is 6mm - 8mm.
5. Quality Standard : MTT676 - 1997.
6. Certificate : ISO9001 0 9002.
